    Rust Preventative Oil DN 2000 PN 10 DIN 2576 Flanges

    Ask Lasest Price
    Brand Name : Shengtian
    Model Number : Flat Flange001
    Certification : ISO9000/EN10204 3.1B/BV/TUV/SGS
    Price : 1-9 Pieces US $15.8/piece; >10 Pieces US $14.6/piece
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 20000000PCS/Year
    Delivery Time : 7-15 work days
    • Product Details
    • Company Profile

    Rust Preventative Oil DN 2000 PN 10 DIN 2576 Flanges

    FLAT FLANGE DN 2000 PN 10 EN1092-1-01 AISI304L Flat Plate Flange


      Frequently referred to as flat flanges, a plate flange has a gasket constructed on its surface in the same plane as the face of the bolting circle. Plate flange manufacturers also make reference to these flange as a flat faced flange. Flat face flanges are often seen in those applications where a cast has been made from the mating flange or flanged fitting. This kind of stainless steel plate flange is recommended to be used when the counter-flanges have a flat face. This is a condition that primarily occurs when connections are to be forged to cast iron equipment, valves and specialities. According to standard ASME B16.5, when a flat face flanges produced from cast iron is used to make a connection with a stainless steel flange, the raised face of the stainless steel flange has to be removed, while including a full face gasket.


    Specifications Of ASME B16.5 Plate Flange


    ASME B16.5 Plate Flange SizeDN2000
    Flat Flanges StandardsEN1092-1-01 304L
    Flat Flange PressurePN10 PN16
    CoatingOil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized
    Types Of Flat FlangesForged / Threaded / Screwed / Plate
    Test CertificatesEN 10204/3.1B
    Raw Materials Certificate
    100% Radiography Test Report
    Third Party Inspection Report, etc
    Flat Flange TechniqueForged, Heat treated and machined
    Connect TypeFF,RF,RTJ
    TestDirect-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector

    Stainless Steel Flat Flanges Manufacturers In China


      Hebei shengtian pipe-fitting group Co., ltd is well known Stainless Steel Plate Flange manufacturers in China. We deliver Hastelloy Plate Flange, API plate flange, PN16 plate flange & Alloy Steel Plate Flange at discounted rate due to reasonable man hours in China and sufficient stock of high quality Carbon Steel Plate Flange at best price available in China. You can check our Plate Flange Pressure Ratings range and decide whether it is catering to your requirements. Check Plate Flange Dimensions In MM and Plate Flange Standard and Weight Chart.

      Hebei shengtian pipe-fitting group Co., ltd is most reliable manufacturer of DIN 2501 plate flange . We maintain extensive stock of Steel Plate Flanges. Our factory is distributor and stockist of ASME B16.5 Plate Flange, in various sizes.

      We can also provide free sample of Carbon Steel Plate Flange. Hebei shengtian pipe-fitting group Co., ltd is looking for more stockholders in Africa, Europe, Middle East, Far East Asia to sell our Class 150 Plate Flange. So mail to sale@stpipefitting.cn to become our authorised dealer & distributor of Stainless Steel Plate Flange in your country.

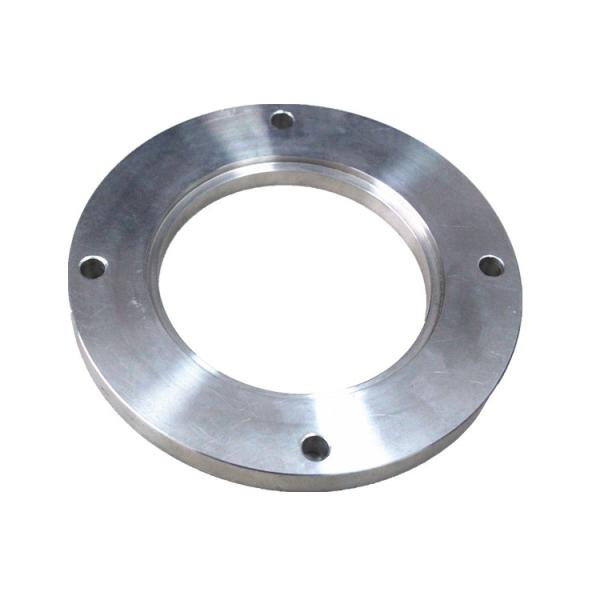

    Stainless Steel Flat Flanges Picture

    Weight Of Flat Flange


    NPSDNFLANGE ODFLANGE THICKNESS DSLIP ON FLANGE WEIGHT (KGS)WELD NECK FLANGE WEIGHT (KGS)BLIND FLANGE WEIGHT (KGS)
    (Inches)(mm)A MMMM
    1/21588.911.20.40.50.4
    3/42098.612.70.60.70.6
    12510814.20.810.9
    1 1/ 432117.315.711.31.2
    1 1/ 24012717.51.31.71.5
    250152.419.12.12.62.4
    2 1/ 265177.822.43.34.13.9
    380190.523.93.94.94.9
    3 1/ 290215.923.94.86.16.2
    4100228.623.95.36.87
    512525423.96.18.68.6
    6150279.425.47.510.611.3
    8200342.928.412.117.619.6
    10250406.430.216.52428.6
    12300482.631.826.236.543.2
    14350533.435.134.648.458.1
    16400596.936.644.860.676.1
    1845063539.648.968.393.7
    20500698.542.961.984.5122
    24600812.847.886.9115185
